The CLS EVO is an electronic, temperature controlled chain lubricator, which guarantees permanent lubrication and cleaning of the chain.
The set includes the control unit, an oil line, an oil tank (150 ml, 250 ml or 500 ml), all attachments and a litre of special oil for approx. 50,000 km.
The CLS 200µ has the following advantages:
Permanent chain lubrication considerably extends the service life of the chain:
- less wear
- Independent cleaning with fresh lubricating oil
- less heating of the chain
- Chain runs easier
- up to 2 kW more power
Ideal for frequent drivers, long distance drivers or for those who simply don't want to lubricate the chain by hand anymore.
The lubrication performance can also be adjusted while driving by means of a rotary switch. It is not necessary to remove the seat to adjust the system. Advantageous e.g. when driving with luggage, at night or in the rain.
The built-in electronics compensate for the temperature-related flow properties of oil. No readjustment necessary at different temperatures.
The oil tank is available in 3 different sizes at no extra charge: 100 ml, 150 ml, 250 ml, 500 ml. The range is, depending on the container size, several thousand kilometers (e.g. 500 ml correspond to approx. 22,000 km!).
The positioning of the oil tank and the electronics is independent of the position, important e.g. for Enduros, Chopper or "Naked bikes".
The system is suitable for motorcycles with carburetor or injection system.
The oiler is only active when the engine is running. An intervention in the on-board electronics is not necessary.
Cleaning the rim is easier than using chain spray.
Very low maintenance costs: Oil is considerably cheaper than the use of chain sprays.
No wearing parts, 36 months warranty, easy conversion to other motorcycles possible.
The high performance chain oil used is toxicologically harmless.
1.0 litre chain oil (included in delivery), sufficient for about 50.000 km.
Waterproof, robust design.
TÜV-tested, EU type approval - no entry in the vehicle documents necessary.
The guarantee on the control electronics of the CLS products is 36 months.
The warranty claim expires if cables are shortened, the electronics box is opened and an internal overvoltage protection is triggered. The internal overvoltage protection is triggered if the control unit is connected directly to the overvoltage or if the controller in the vehicle is defective.

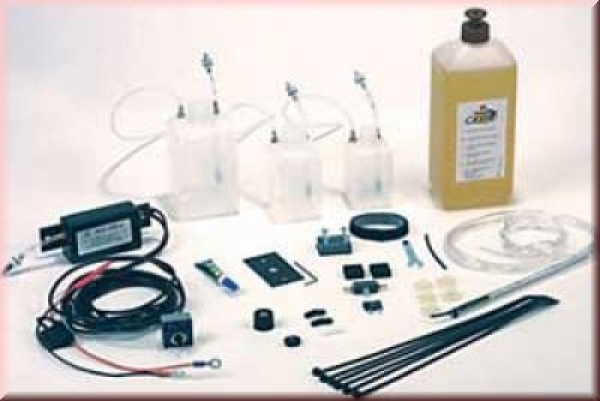

Included in the set:
Electronics box
rotary switch
Tank (optionally 150 ml, 250 ml or 500 ml)
hose system
1 tube instant adhesive
1 retaining piece with 2 retaining brackets and 4 screws
4 guide pieces
5 hose installation pieces (cable clips)
1 rotary knob for rotary switch
1 hexagon socket wrench, 2 mm
6 cable ties, 280 mm
1 Velcro
1 Hose end piece black (replacement)
1 Flow adjuster
1 hose connector
1 plastic plate (rotary switch holder/drilling jig)
1 Fuse 1A (replacement)
1 litre chain oil
